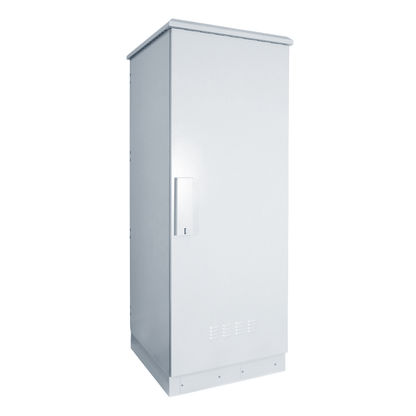

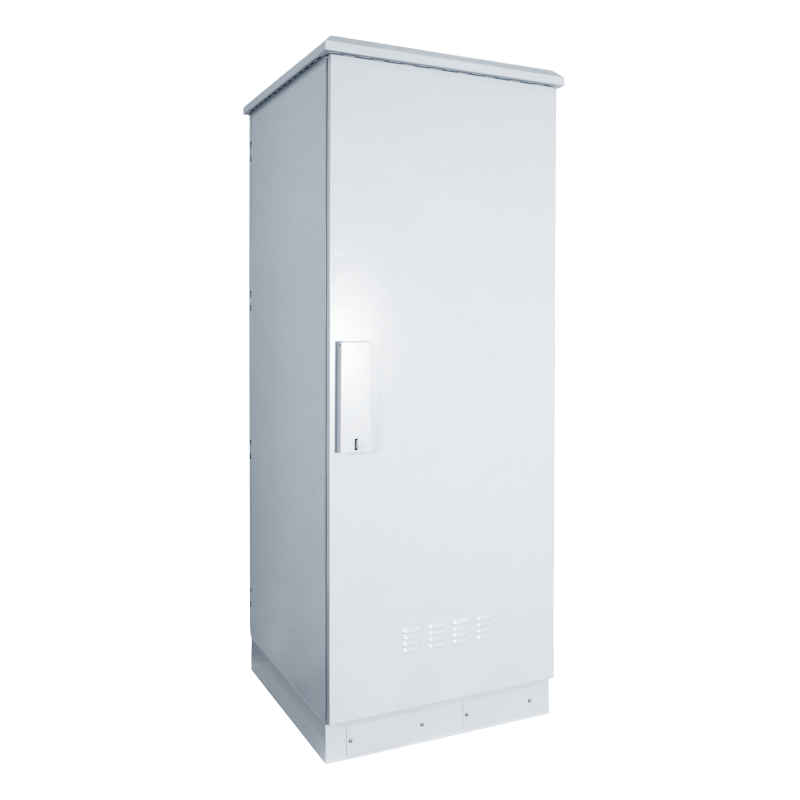

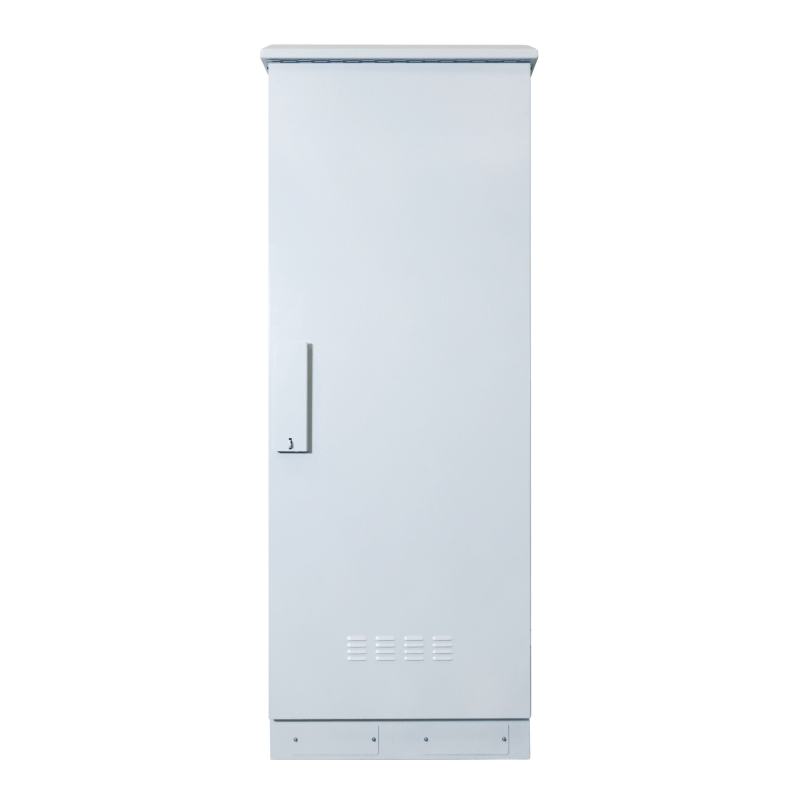

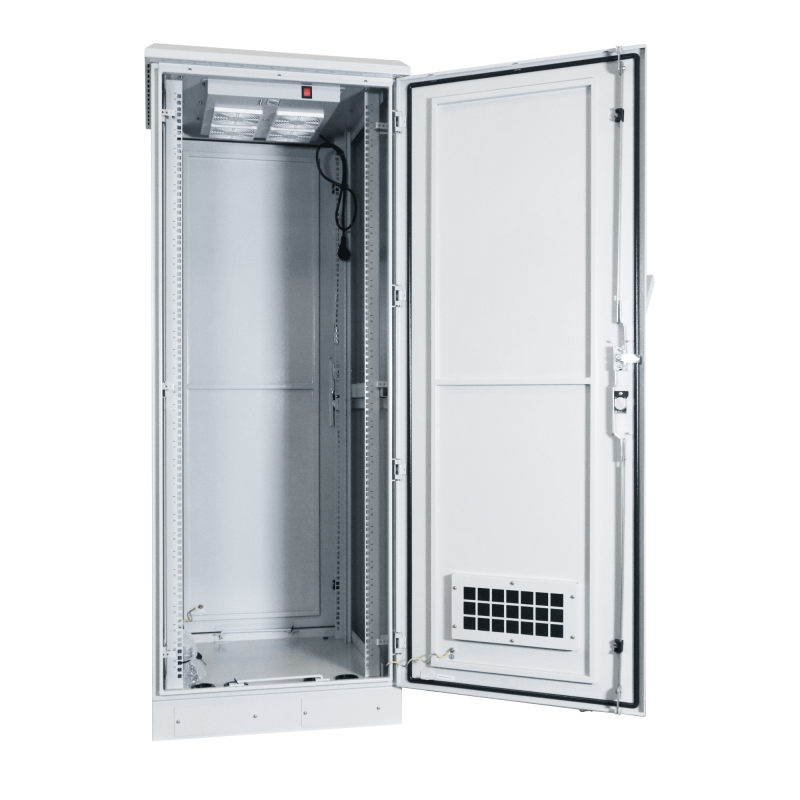

42U outdoor battery rack enclosure – IP55, 600×600×2000mm

Bring grid-scale protection to your lithium or LFP modules. This free-standing 42U cabinet is purpose-built for high-density energy-storage in the open air, marrying a welded steel shell with proven IP55 weather sealing.

Built for rugged, high-capacity battery banks

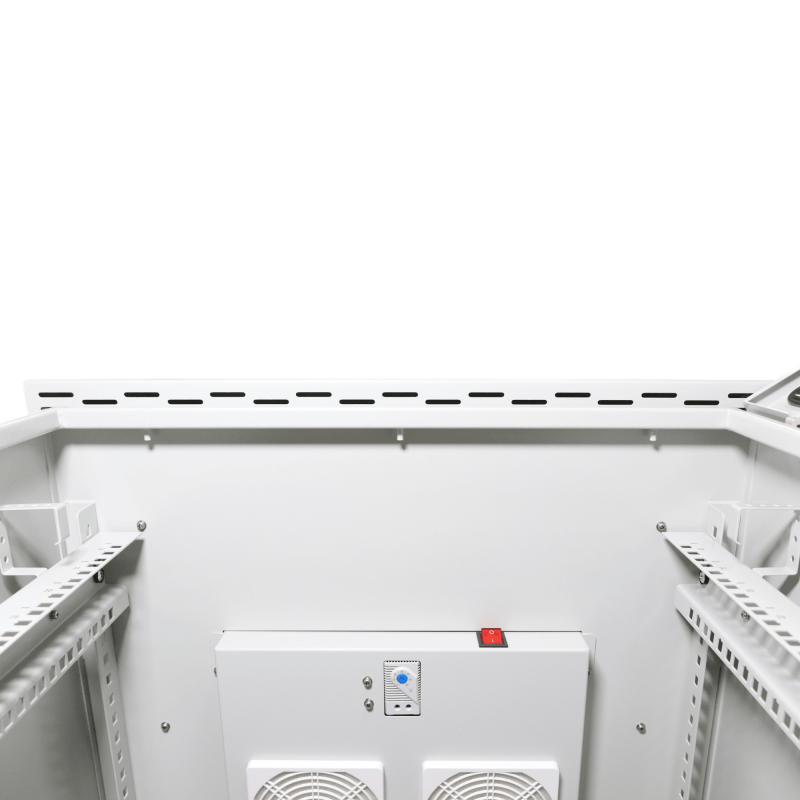

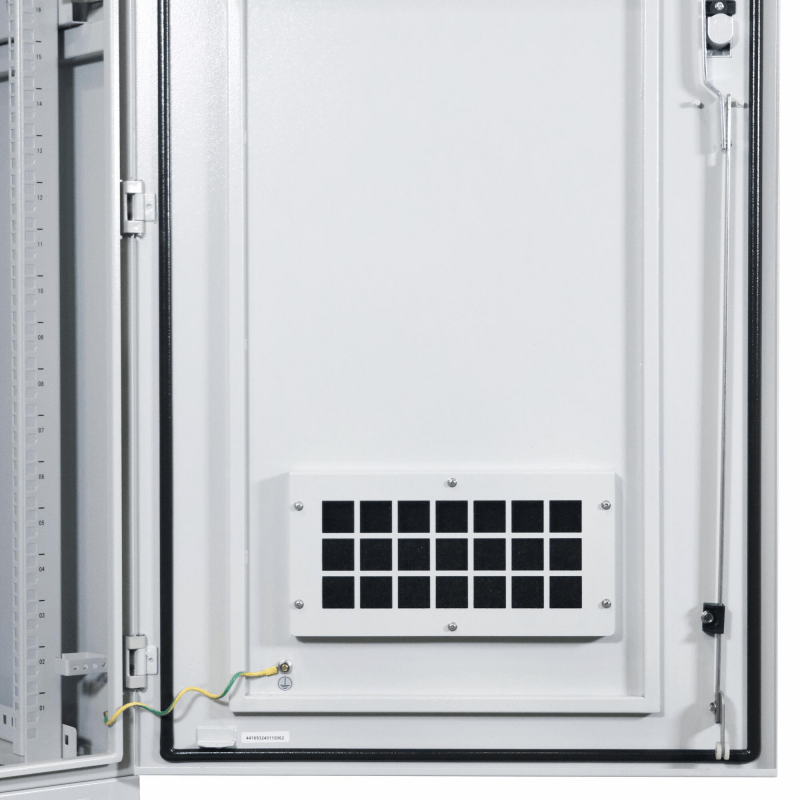

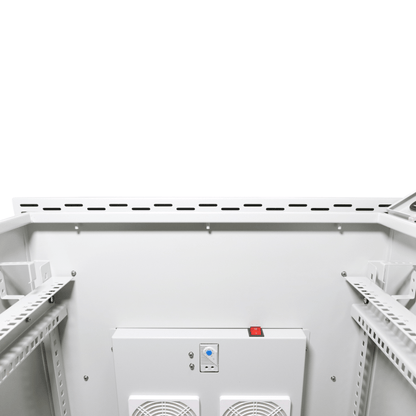

• IP55 enclosure – dust-tight and water-jet-resistant, with rain-louvred air inlets and a roof exhaust fan, so cells stay dry, cool and happy even in driving rain.

• 800 kg static load on heavy-gauge SPCC steel means you can stack up to 20 × 2U or 14 × 3U battery packs without chassis flex.

• Four depth-adjustable 19-inch rails (clear install depth ≈ 500 mm) with laser-etched U markings take standard rack batteries, BMS units and DC fuse panels straight out of the box.

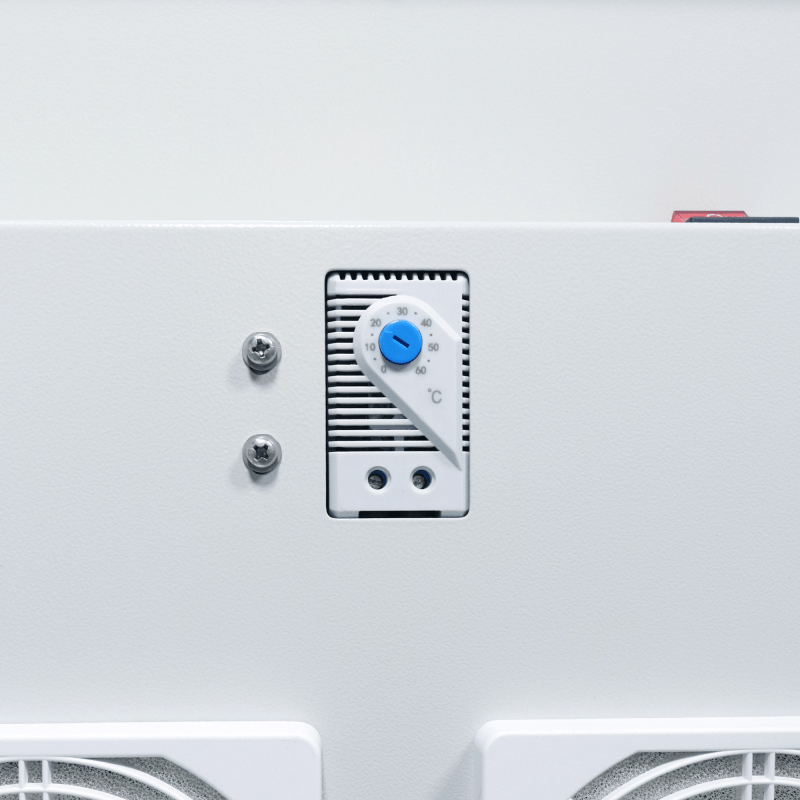

• Climate-ready options – factory knock-outs accept 30 W–100 W anti-condensation heaters or extra fan trays for extreme sites; all accessories slot in without drilling.

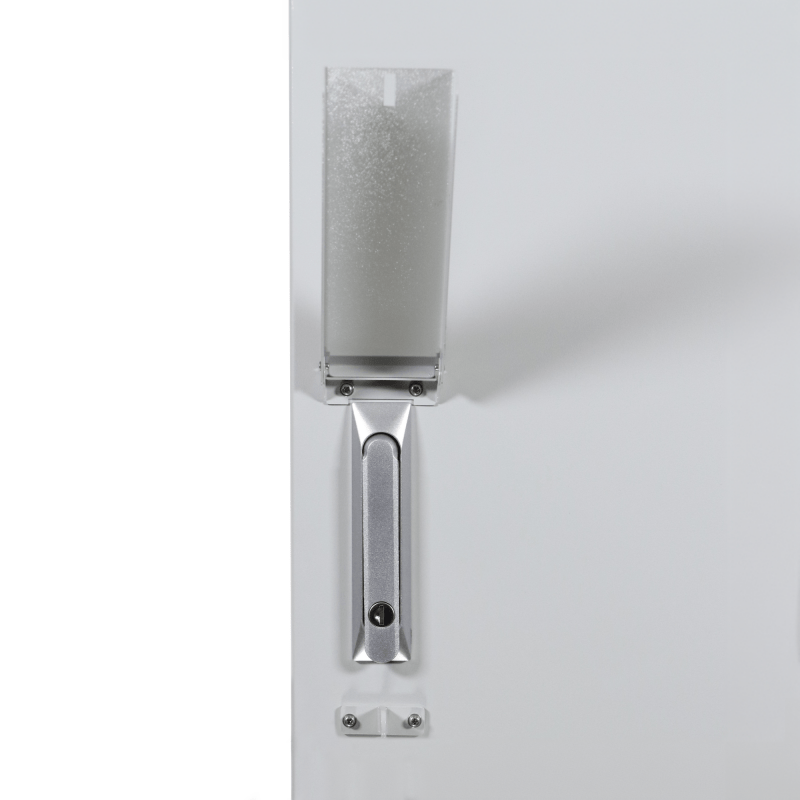

• Secure all-steel doors front and rear plus lockable side panels deter tampering and keep live DC safely enclosed.

• Tool-free cable routing – gasketed gland plate in the base handles heavy-gauge DC and comms cables while preserving the IP rating.

Key specs

Perfect for

Off-grid solar & wind batteries • EV-charger buffer storage • Telecom BTS backup • Maritime & port power cabinets • Utility substations

Order before 16:00 CET and your cabinet ships the same business day, ready for immediate deployment on site.
